Litharv · Battery Series
Lithium iron phosphate (LiFePO4) batteries with ultra-long cycle life.
Litharv

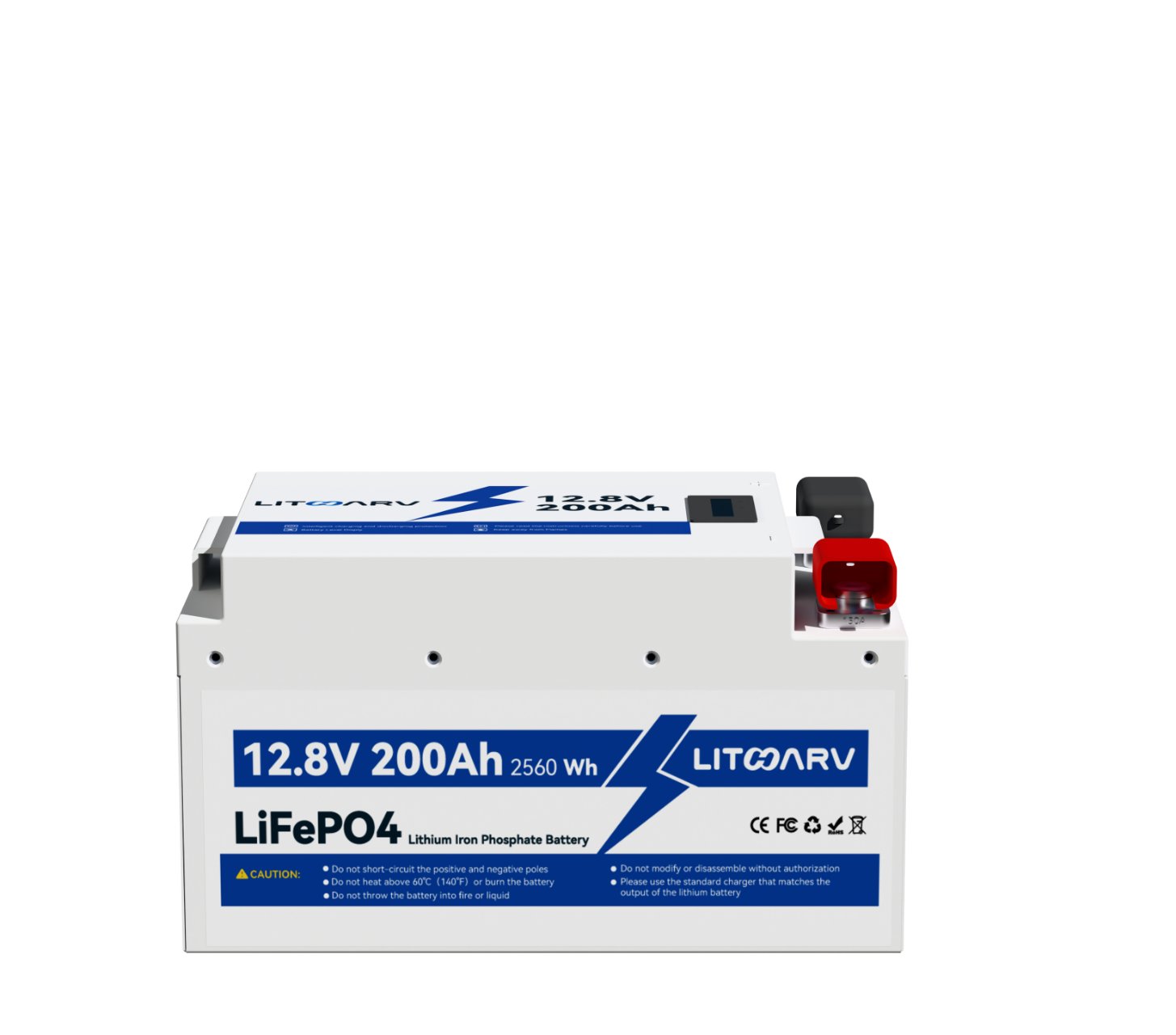

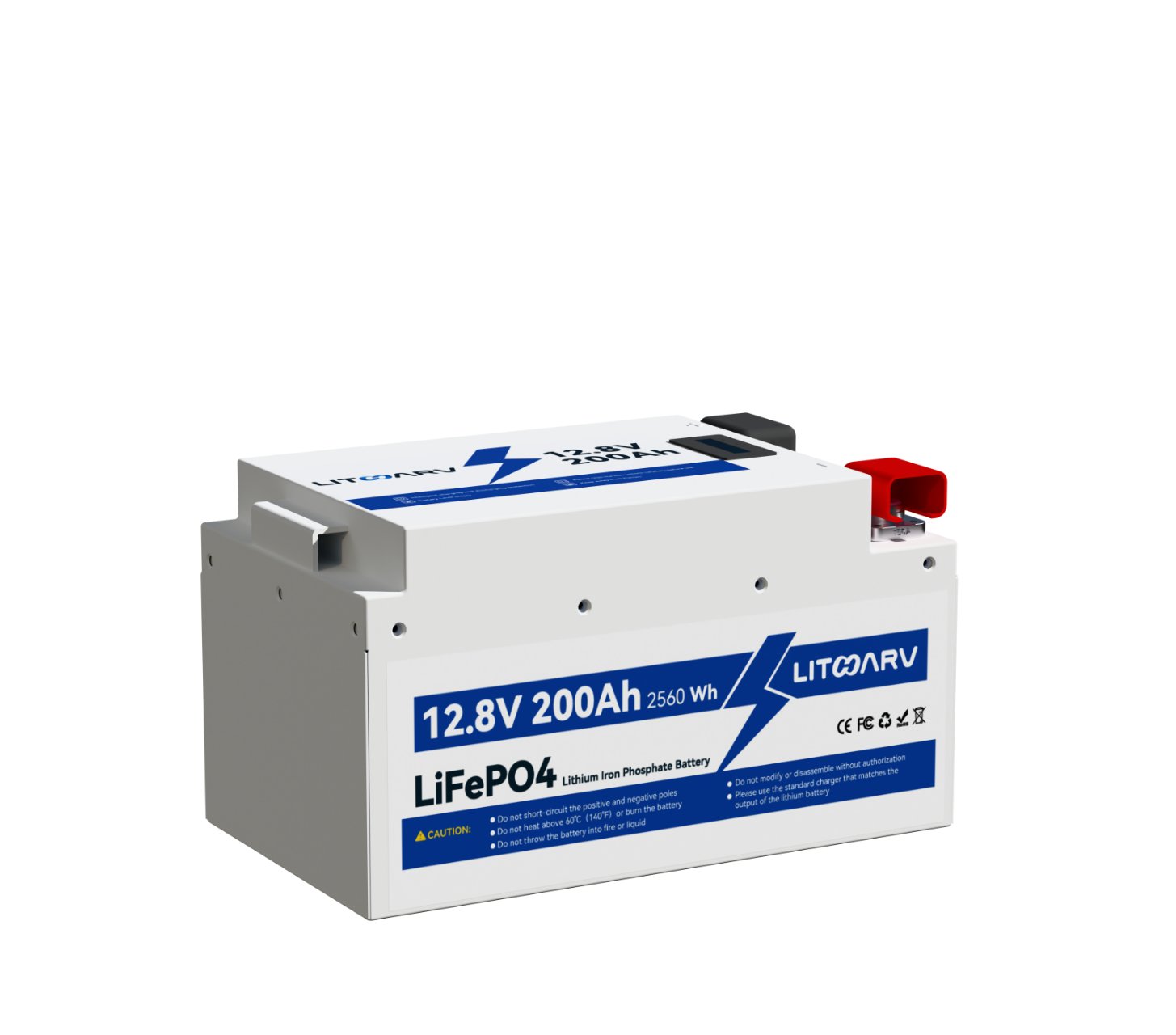

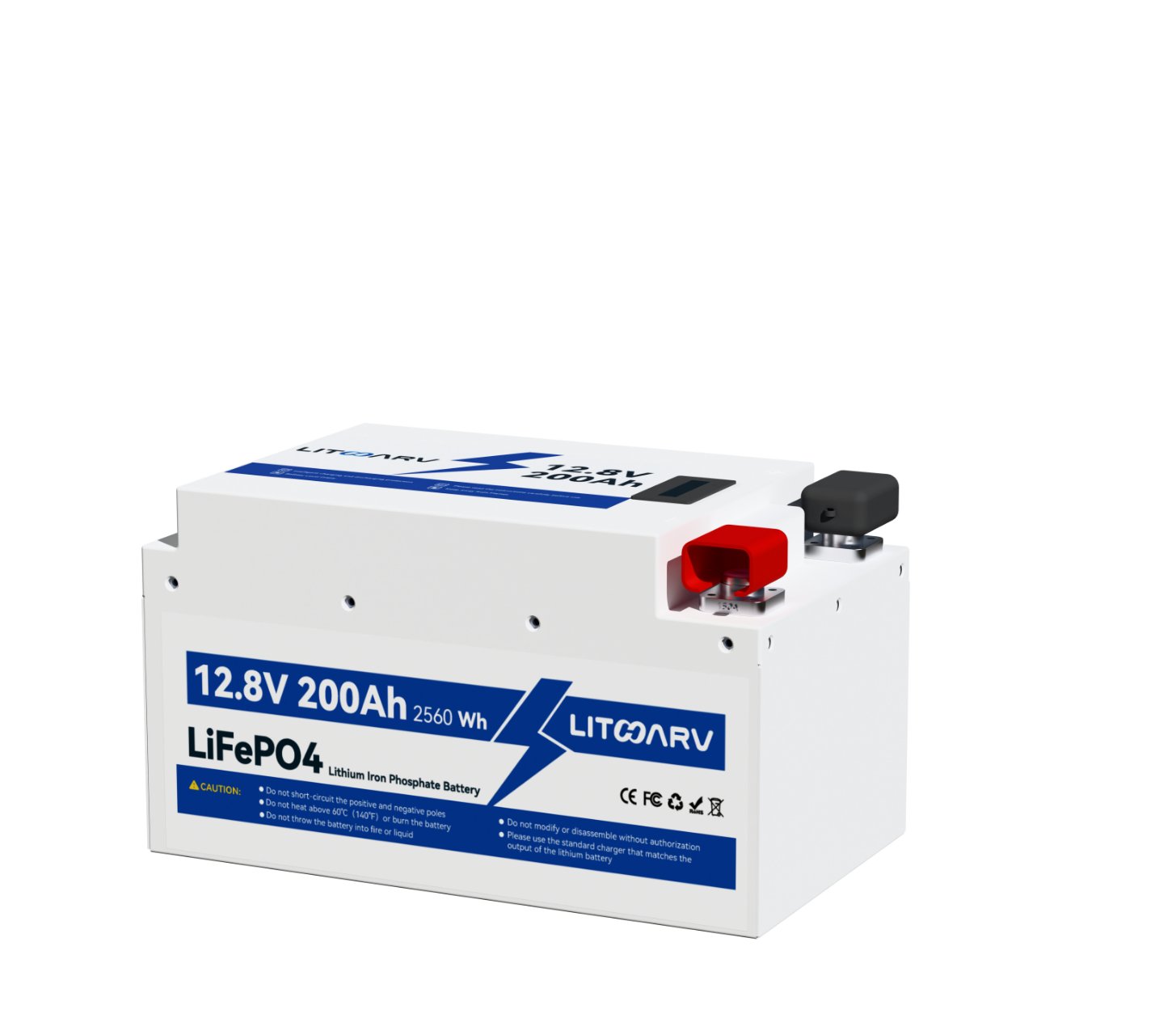

12.8V 2.56KWH 200Ah LiFePO4 Battery
12.8V 200Ah LiFePO4 battery with 2.56kWh energy, integrated BMS, LCD display option, and parallel capability
- 12.8V 200Ah LiFePO4 battery; 2.56kWh / 2560Wh.
- 4S1P configuration; integrated BMS.
- Max charge current 200A; max discharge current 200A.
- LCD display optional.
- Expansion: max 4 parallel recommended
- Cycle life >5000 cycles @ 0.5C @ 90% DOD.
- Dimensions 353×205×200 mm; weight 18.7kg.
- Working temperature: charge 0–55°C / discharge -20–60°C.
- Protection level: IP65; altitude < 500m.
- Certificates: CE, MSDS, UN38.3.
Battery
| Parameter | Specification |
|---|---|
| Voltage | - 12.8V nominal |
| Capacity | - 200Ah |
| Energy | - 2.56kWh / 2560Wh |
| Battery Type | - LiFePO4 (LFP), 4S1P |
| Max Discharge | - 200A |
| Cycle Life | - >5000 cycles @ 0.5C @ 90% DOD |
| Warranty | - 3 years replacement |
Product overview
12.8V 200Ah LiFePO4 battery delivering 2.56kWh nominal energy. It uses an integrated BMS, supports LCD (optional), and is designed for deep-cycle energy storage. The battery is suitable for solar, backup, and off-grid applications where a 12.8V nominal pack is required. Certificates: CE, MSDS, UN38.3.
Warranty
3 years replacement warranty
