Litharv · Battery Series
Lithium iron phosphate (LiFePO4) batteries with ultra-long cycle life.
Litharv

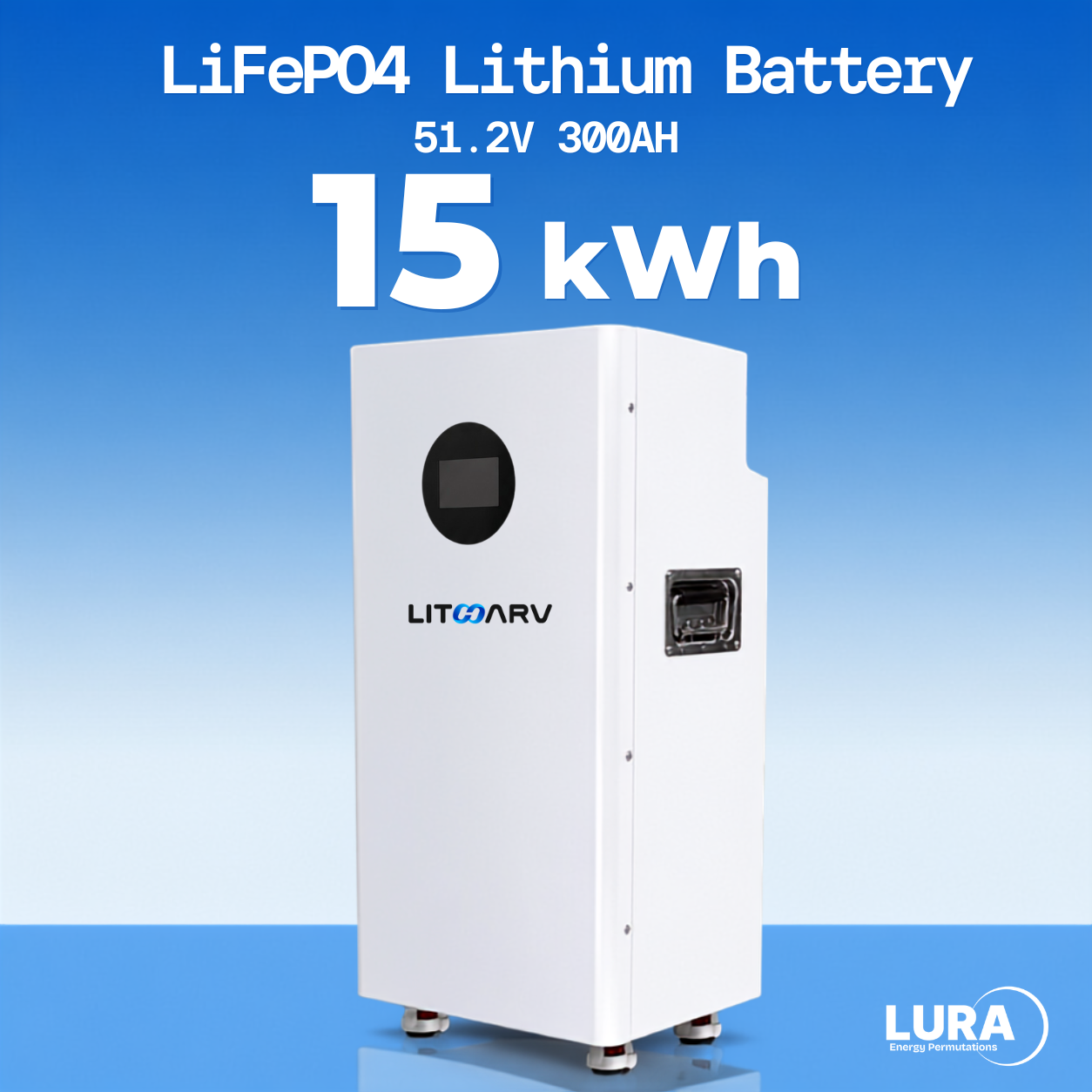

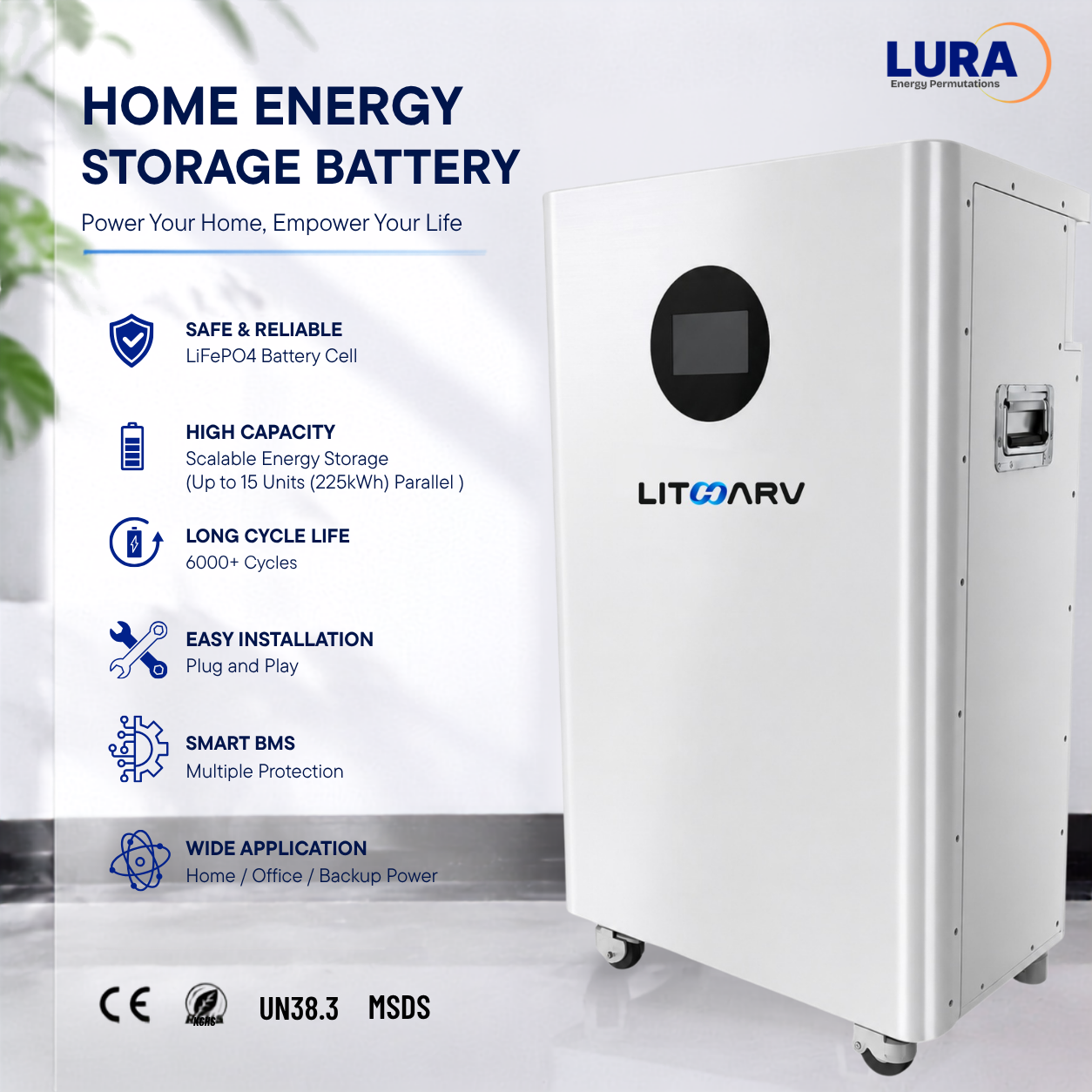

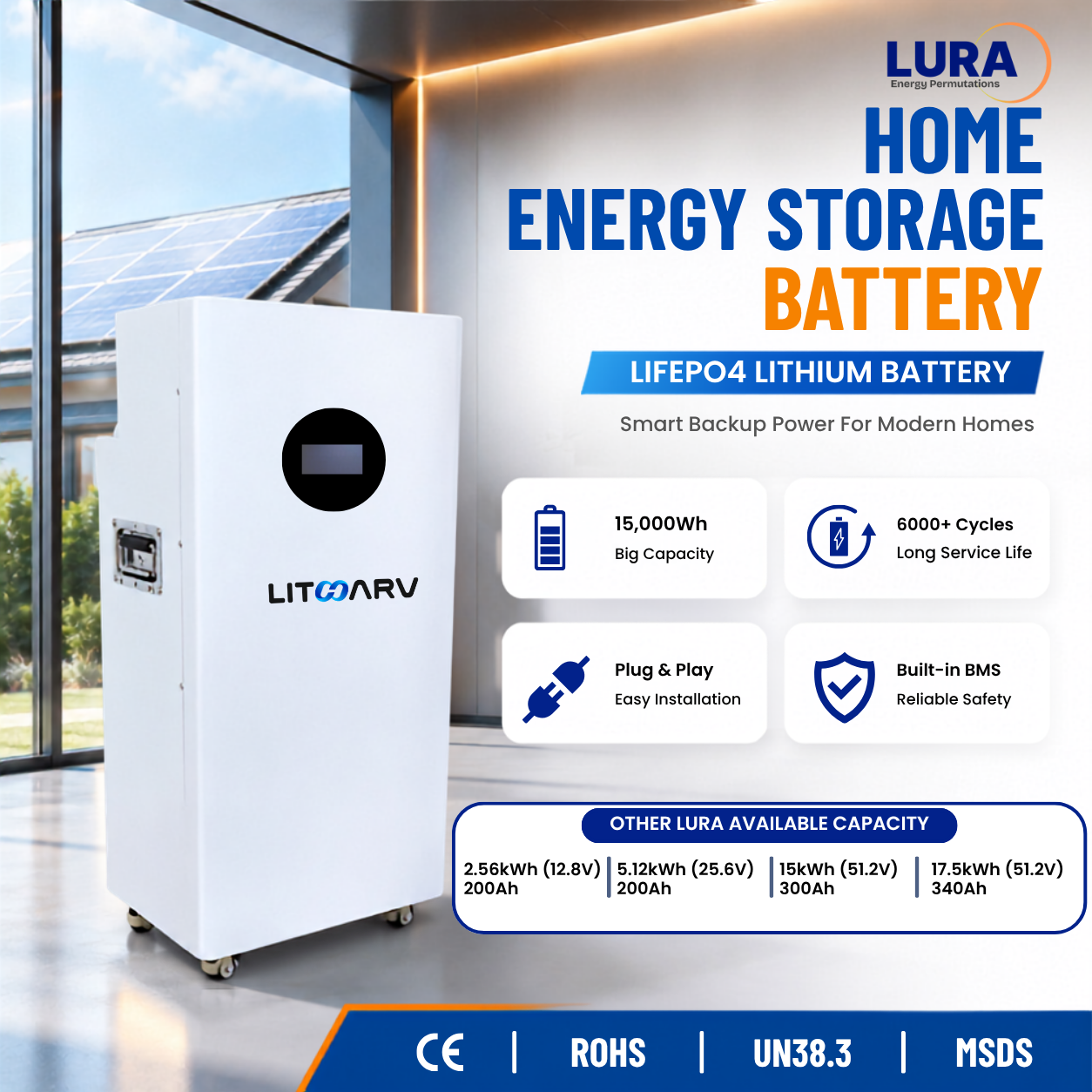

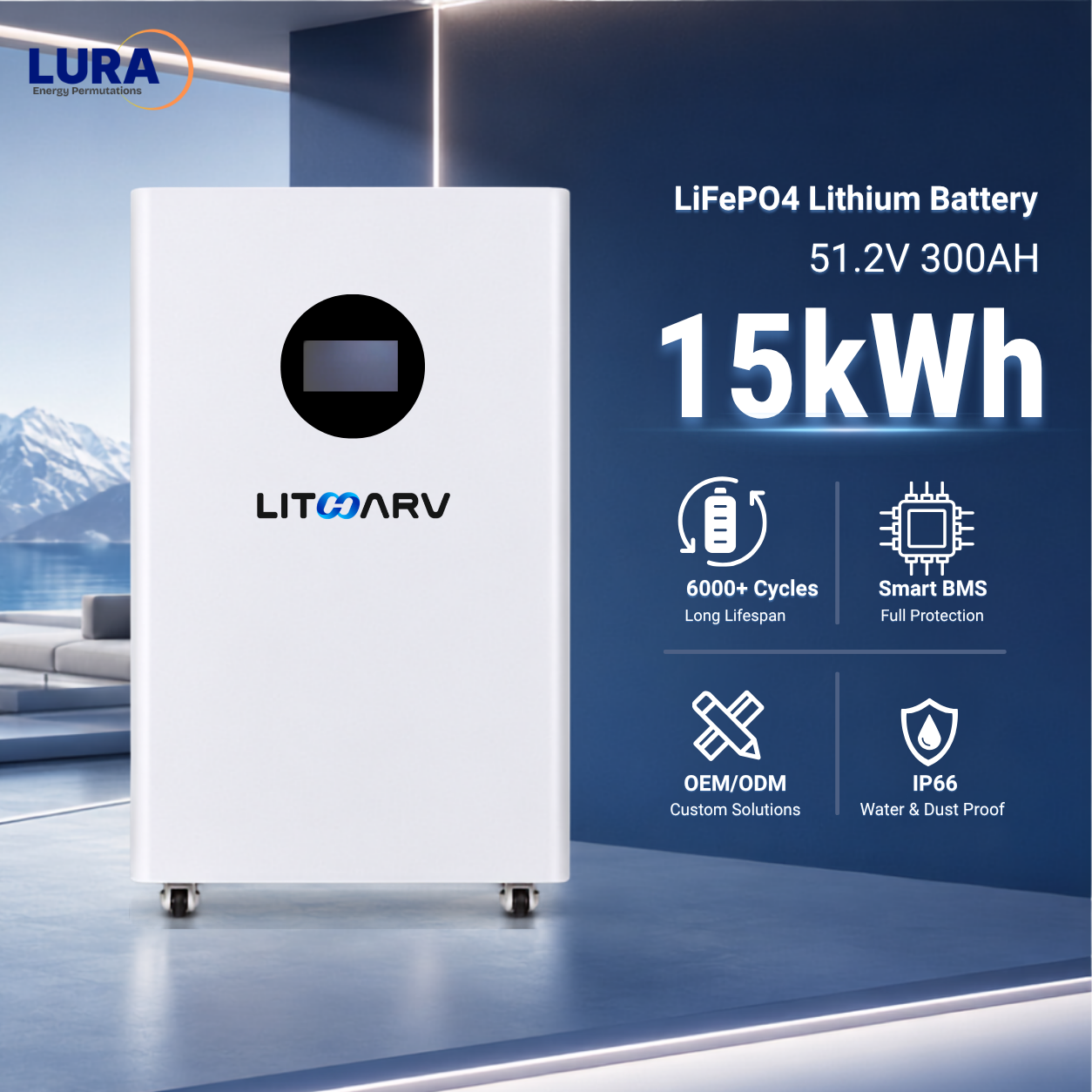

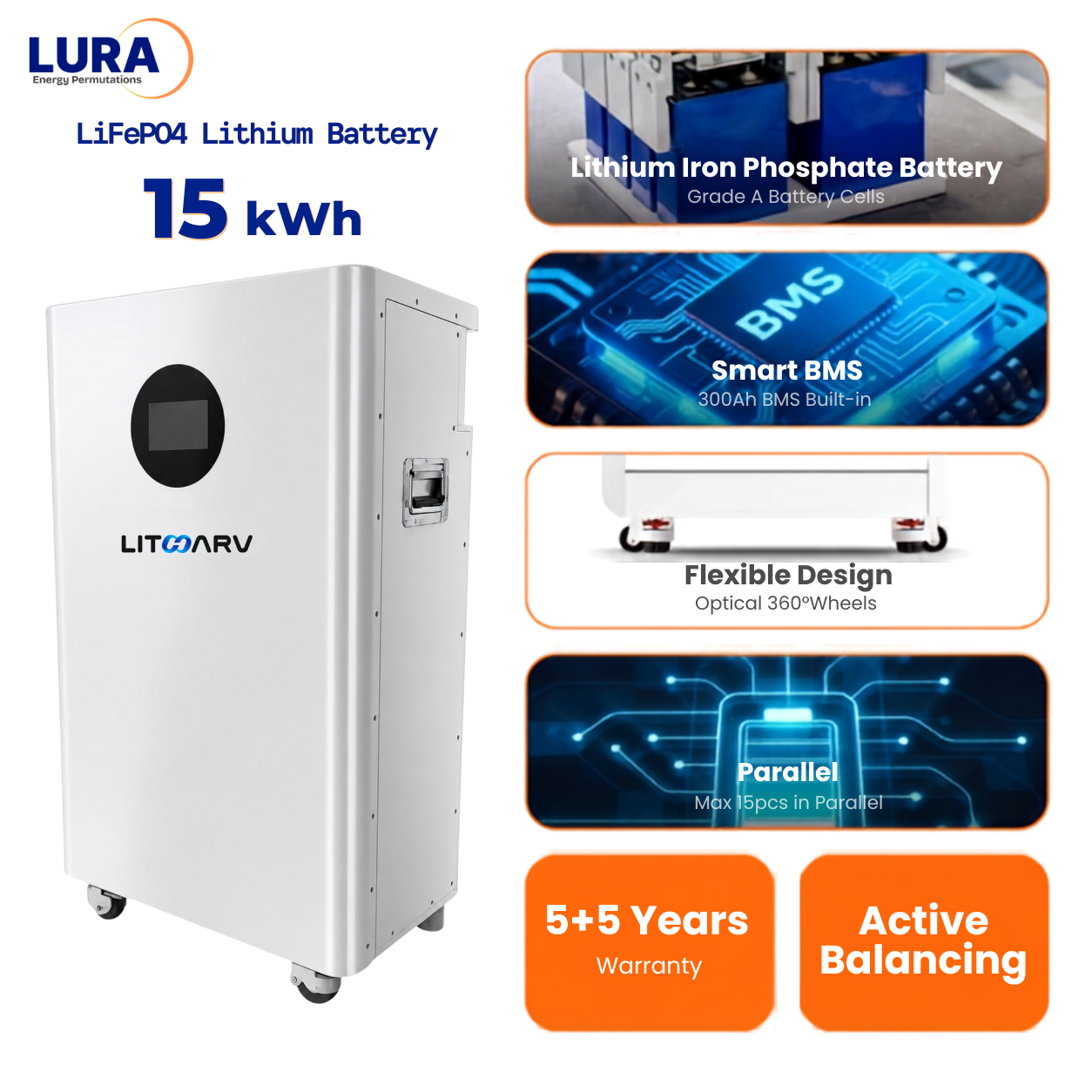

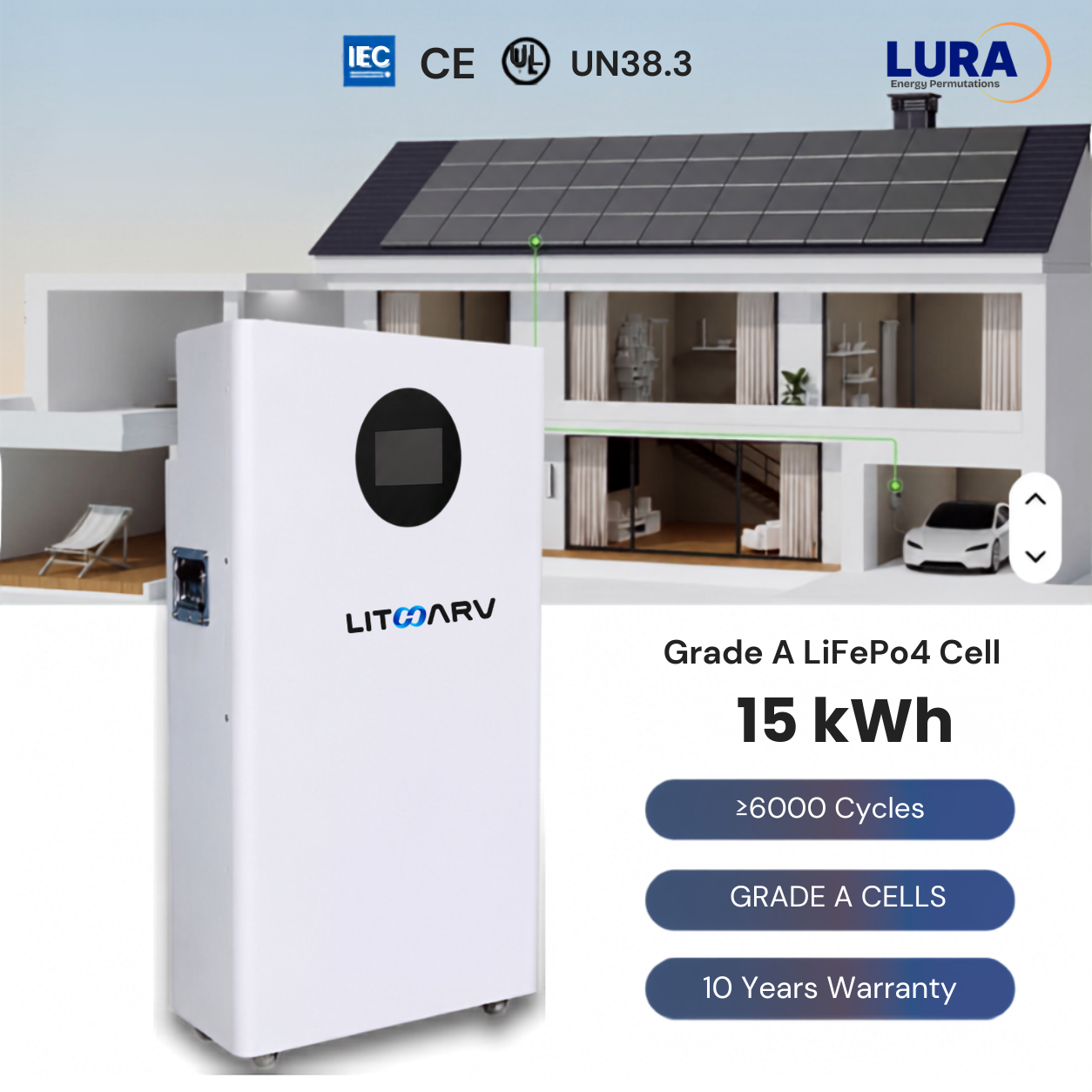

51.2V 15KWH LiFePO4 Battery
LH-HSE-F-512300
51.2V 300Ah floor-mounted LiFePO4 battery with 15.36kWh, smart BMS, touch screen, and up to 15/16 units in parallel.
- 51.2V 300Ah LiFePO4 battery; 15.36kWh total energy.
- 4.3-inch multi-language touch screen.
- JBD APP WiFi & Bluetooth control/monitoring.
- Built-in smart BMS full protection.
- Long-life LiFePO4 cells with 6000 cycles.
- Compatible with over 30+ mainstream inverter brands.
- Expandable up to 16 units in parallel, total 240kWh; dual wiring solutions (spec table says up to 15 units, max 255kWh — verify).
- 95% max DOD; high power output with 300A peak current.
- Recommended continuous charge/discharge: 120A; max continuous: 200A.
- Communication: RS485, CAN, RS232; net weight 142.5kg; dimensions 500×353×849 mm.
Battery
| Parameter | Specification |
|---|---|
| Voltage | - 51.2V nominal |
| Capacity | - 300Ah |
| Energy | - 15.36kWh |
| Battery Type | - LiFePO4 (LFP) |
| Max Discharge | - 200A continuous; 300A peak (3s) |
| Cycle Life | - 6000 cycles (0.5P charge/discharge @ 25° |
| Warranty | - 5 years replacement + 5 years repair |
Product overview
Floor-mounted 51.2V 15.36kWh LiFePO4 energy storage battery for home backup and solar storage. It features a 4.3-inch multi-language touch screen, JBD APP WiFi & Bluetooth monitoring, built-in smart BMS, and compatibility with over 30+ mainstream inverter brands. It supports high power output with 300A peak current and 95% max DOD.Floor-mounted 51.2V 15.36kWh LiFePO4 energy storage battery for home backup and solar storage. It features a 4.3-inch multi-language touch screen, JBD APP WiFi & Bluetooth monitoring, built-in smart BMS, and compatibility with over 30+ mainstream inverter brands. It supports high power output with 300A peak current and 95% max DOD.
Warranty
5 years replacement + 5 years repair
