Litharv · Battery Series
Lithium iron phosphate (LiFePO4) batteries with ultra-long cycle life.
Litharv
51.2V 8kWh LiFePO4 Battery
51.2V 8kWh floor-mounted LiFePO4 battery with 155Ah, 16S configuration, 1A active balancing BMS, and up to 16 units in parallel
- 51.2V 8kWh LiFePO4 floor-mounted battery; 155Ah nominal capacity.
- 16S configuration with CALB / Zhonghang LiFePO4 cells.
- JK-PB1A16S-10P BMS with 1A active balancing.
- Max continuous charge/discharge: 100A; max instantaneous 100A.
- Charge cut-off 57.6V; discharge cut-off 41.6V.
- Up to 16 units in parallel; series connection prohibited.

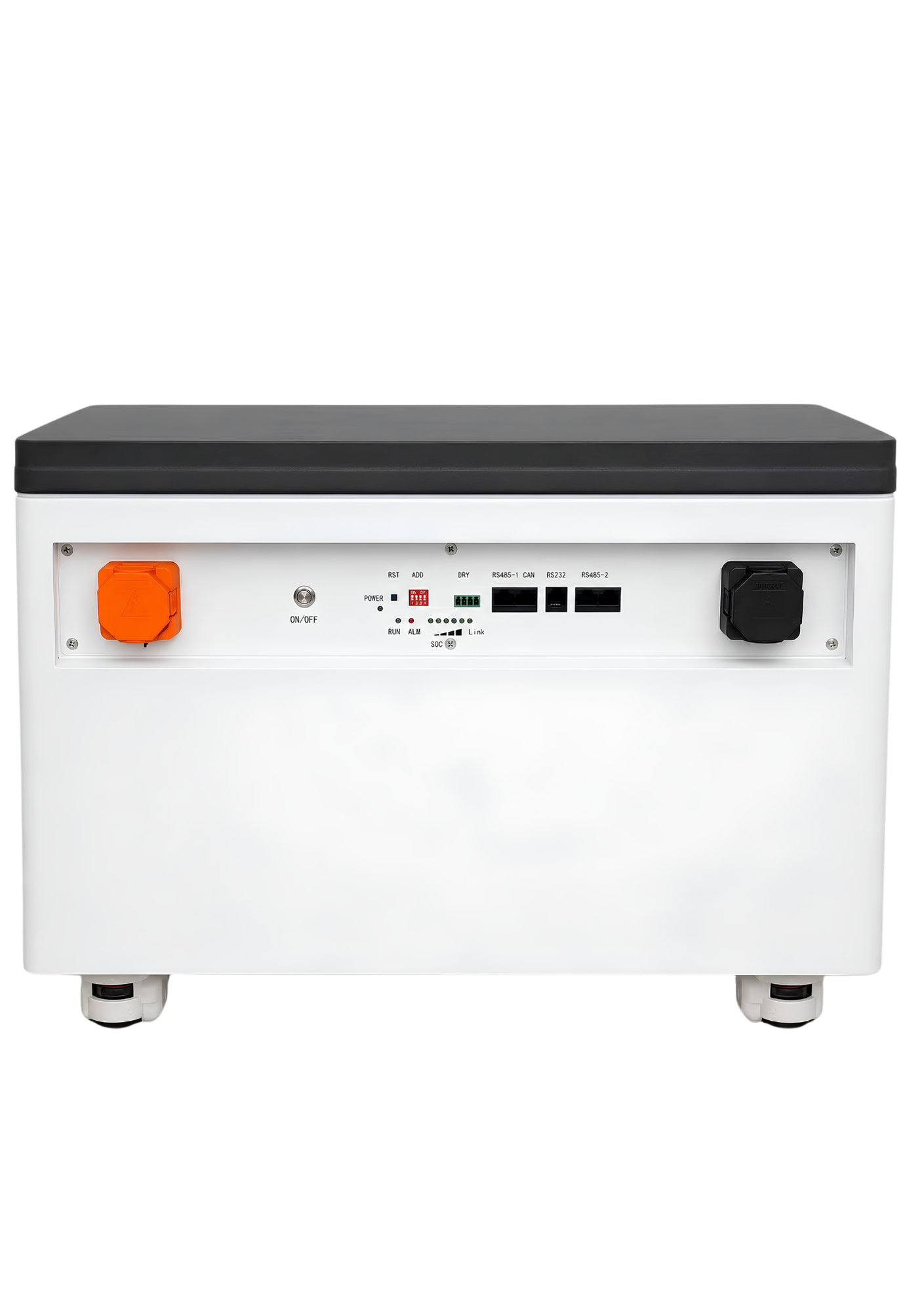

- Communication: CAN / RS485 / RS232 / Bluetooth; LCD display.

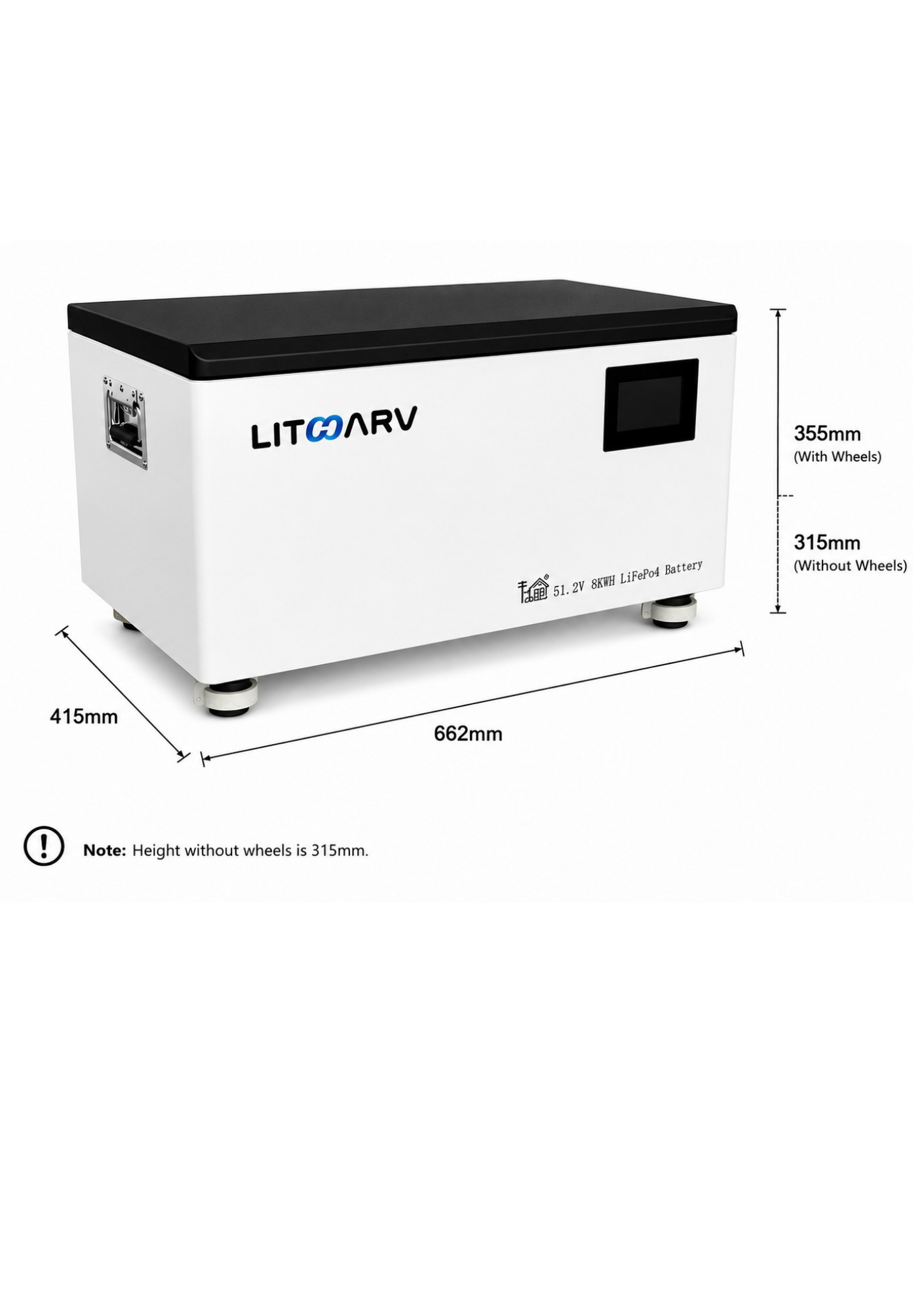

- Dimensions 662×415×355 mm; height without wheels 315 mm; 81±3kg.
- IP20; floor-mounted with wheels.
- Operating charge 0–45°C; discharge -10–55°C.
- APP default password 1234; parameter setting password 666666.
Battery
| Parameter | Specification |
|---|---|
| Voltage | - 51.2V nominal |
| Capacity | - 155Ah nominal |
| Energy | - 8kWh |
| Battery Type | - LiFePO4, 16S, CALB/Zhonghang cells |
| Max Discharge | - 100A |
| Cycle Life | - ≥8000 cycles |
| Warranty | - 5 years replacement + 5 years repair |
Product overview

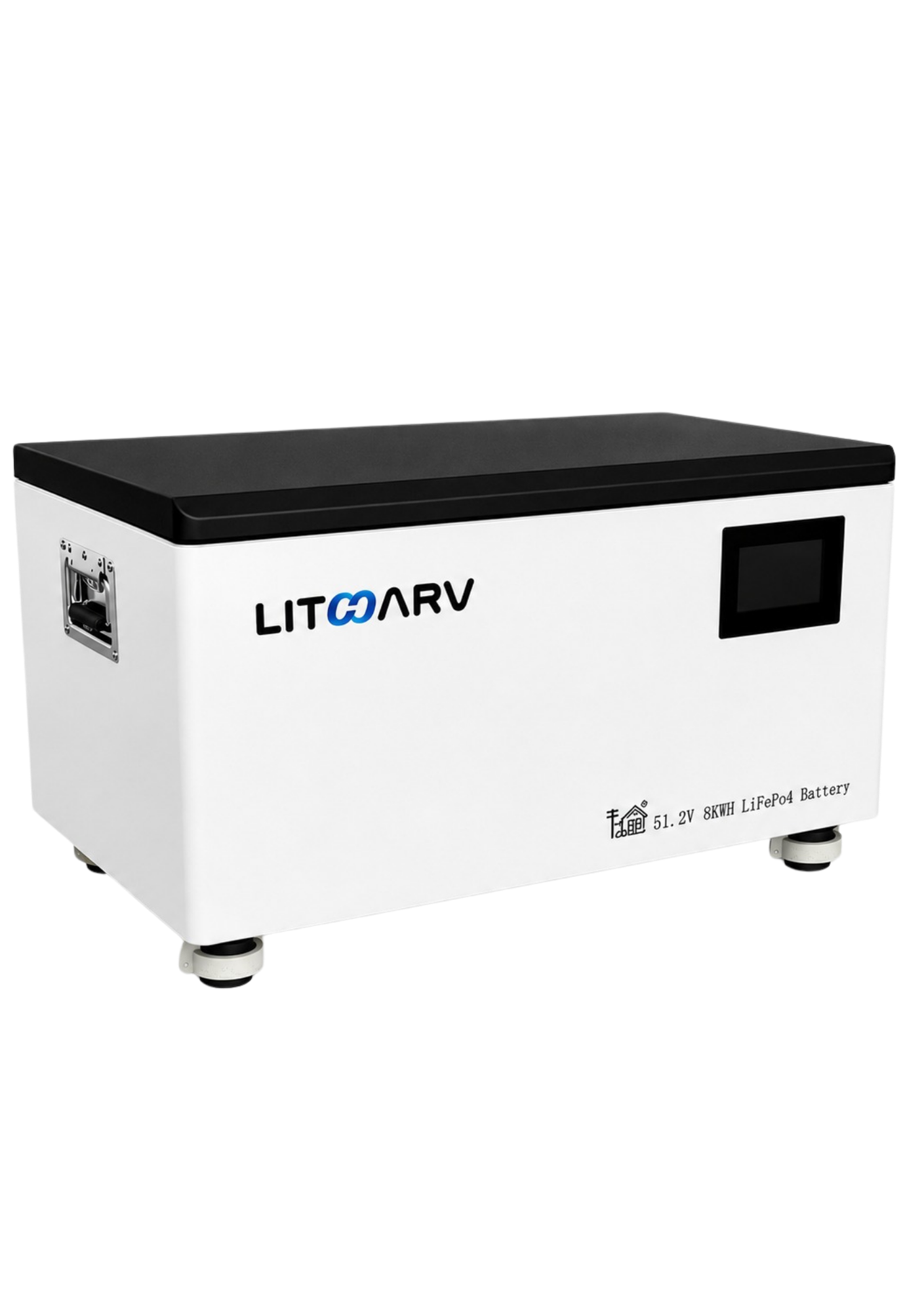

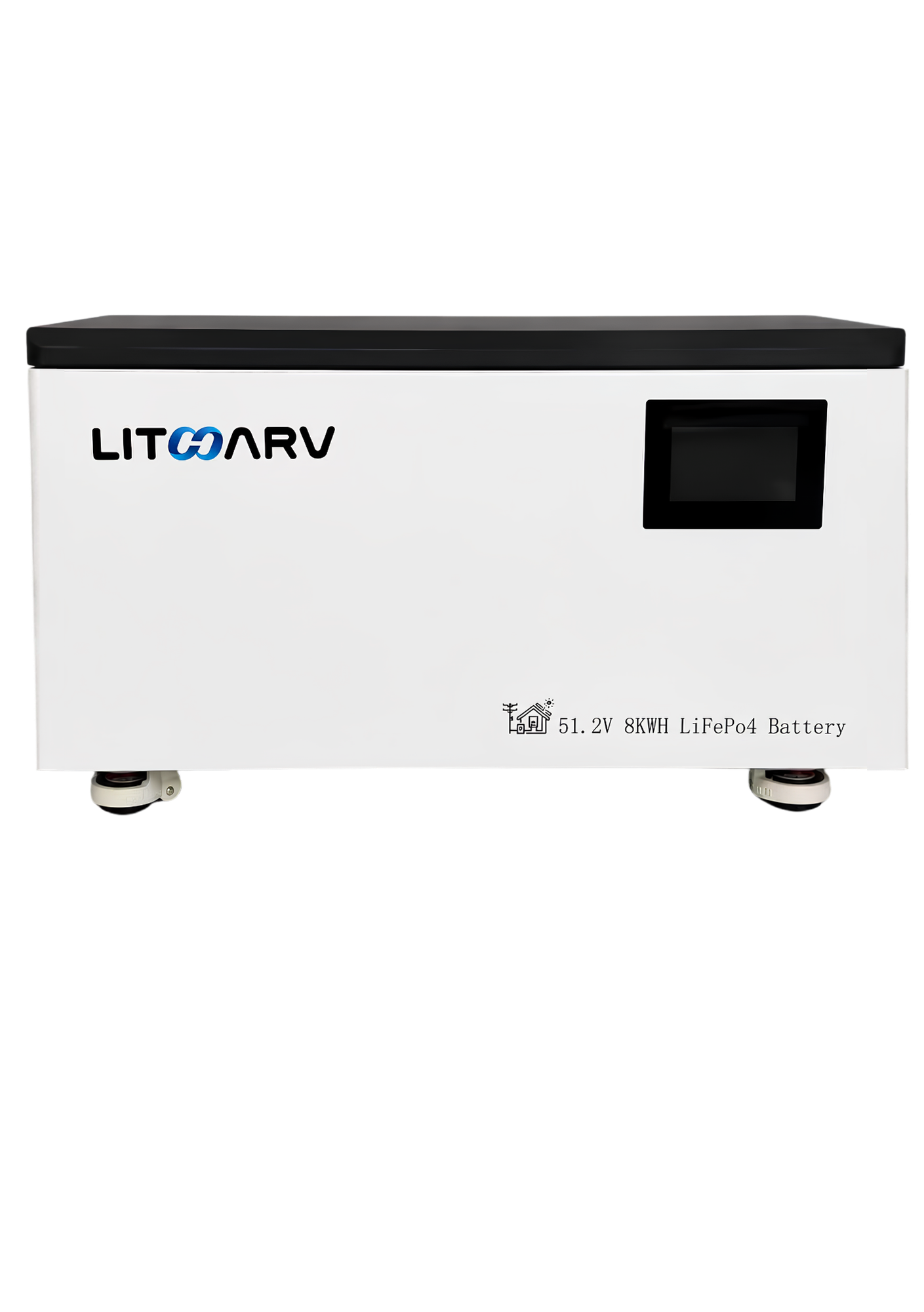

LITHARV 51.2V 8kWh LiFePO4 battery is a floor-mounted lithium iron phosphate energy storage battery. It is configured as 16S, uses CALB / Zhonghang LiFePO4 cells, and is managed by a JK-PB1A16S-10P BMS with 1A active balancing. It supports up to 16 units in parallel, with CAN / RS485 / RS232 / Bluetooth communication and an LCD display. Series connection is prohibited. Suitable for home energy storage with safe, reliable, and long-life LiFePO4 technology.
Warranty
5 years replacement + 5 years repair
