Litharv · Inverter Series
Hybrid inverters for homes and businesses — 12V, 24V, and 48V models.
Litharv

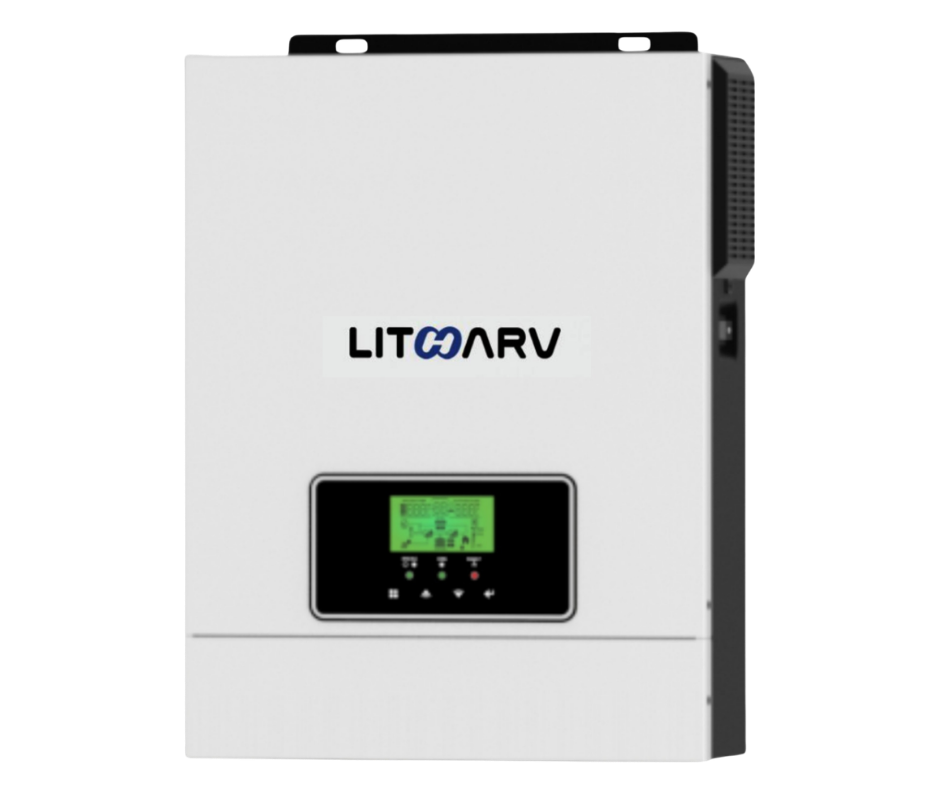

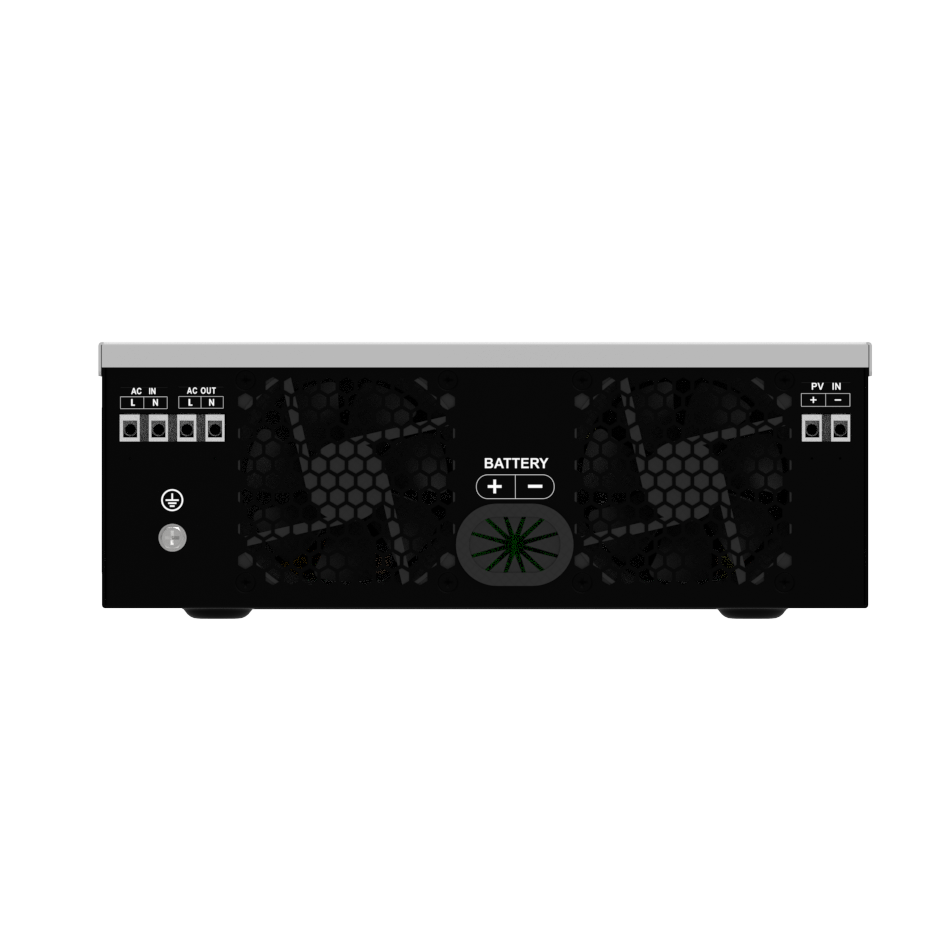

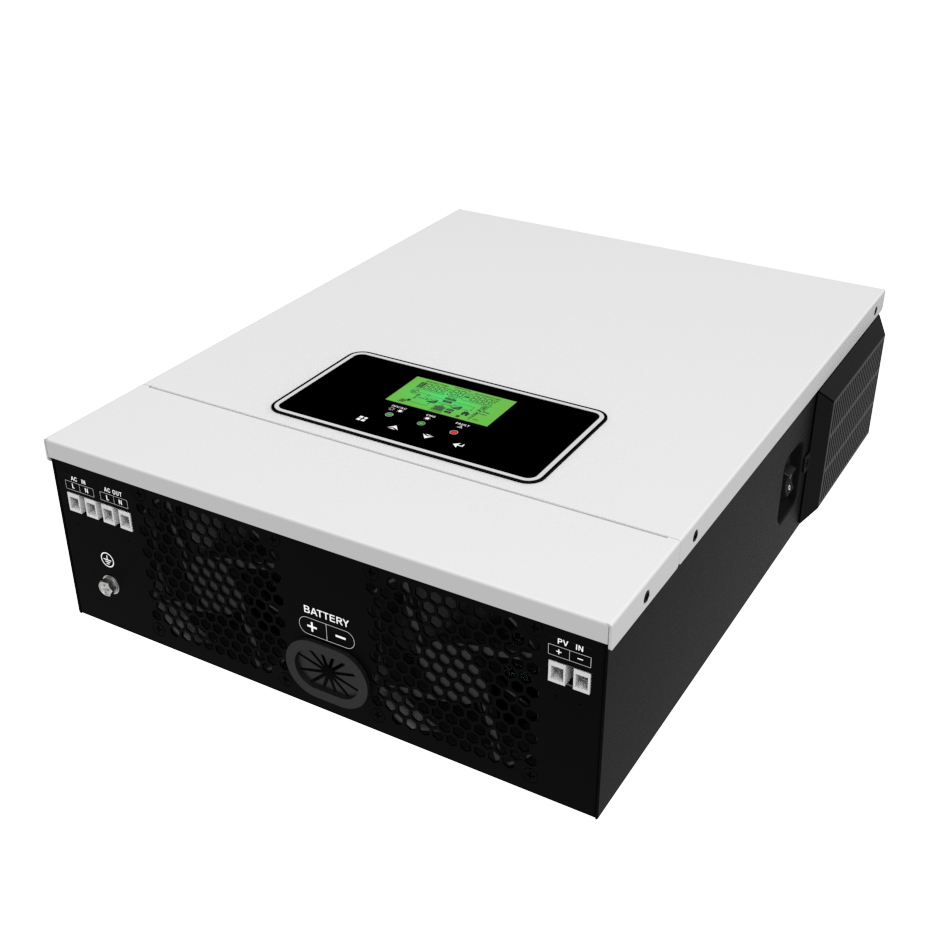

Wall mounted 12V, 1.6kw Hybrid inverter
LTH-1.6K-12V
1.6 kW / 2 kVA wall-mounted 12V hybrid inverter with MPPT solar charging, pure sine wave output, and grid/off-grid/hybrid operation.
- 1.6kW/2kVA wall-mounted hybrid inverter for 12V battery systems.
- Max PV input 2000W
- 400Vdc max solar Voc; MPPT 30–400Vdc; 13A max PV current.
- 230VAC output; 50/60Hz auto sensing; 10ms transfer time.
- Max solar charging 80A; max AC charging 60A; max solar+AC 140A.
- Surge power 2000VA; peak efficiency 98% PV-to-INV / 92% battery-to-INV.
- Dimensions 416×291×112 mm; net 6.6kg / gross 7.5kg.
- Operating -10°C–50°C; humidity 5–95% non-condensing.
- CE compliance.
- Wall-mounted hybrid design for home/small commercial backup.
Inverter
| Parameter | Specification |
|---|---|
| Rated Power | - 1.6kW / 2kVA |
| Inverter Type | - Hybrid inverter, 1-phase, pure sine wave |
| PV Input | - 2000W; 400V Voc; MPPT 30–400Vdc; 13A |
| Battery Voltage | - 12V |
| Surge Power | - 2000VA |
| Efficiency | - 98% peak PV-to-INV; 92% battery-to-INV |
| Warranty | - 2 years replacement + 1 year repair |
Product overview
Wall-mounted 12V hybrid inverter designed for home and small commercial backup/solar systems. It combines a 2000W/2000VA inverter, MPPT solar charger, AC charger, and battery compatibility. Supports PV input up to 2000W, 230VAC output, and 12V battery systems. Suitable for hybrid, off-grid, and grid-tie operation. CE compliant
Warranty
2 Years Replacement + 1 Year Repair Warranty
Technical datasheet
Wall mounted 12V, 1.6kw Hybrid inverter — LTH-1.6K-12V
Datasheet PDF
