Litharv · Inverter Series
Hybrid inverters for homes and businesses — 12V, 24V, and 48V models.
Litharv

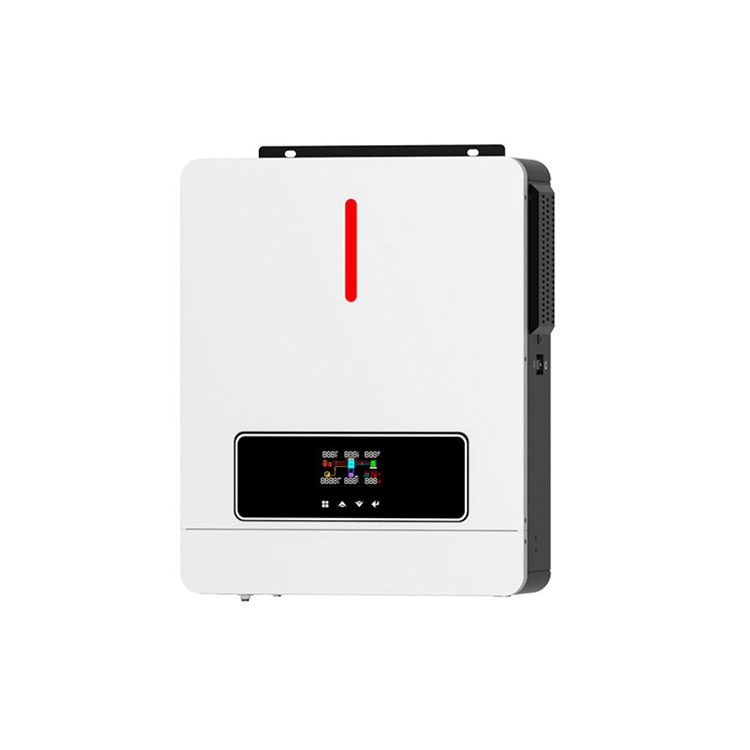

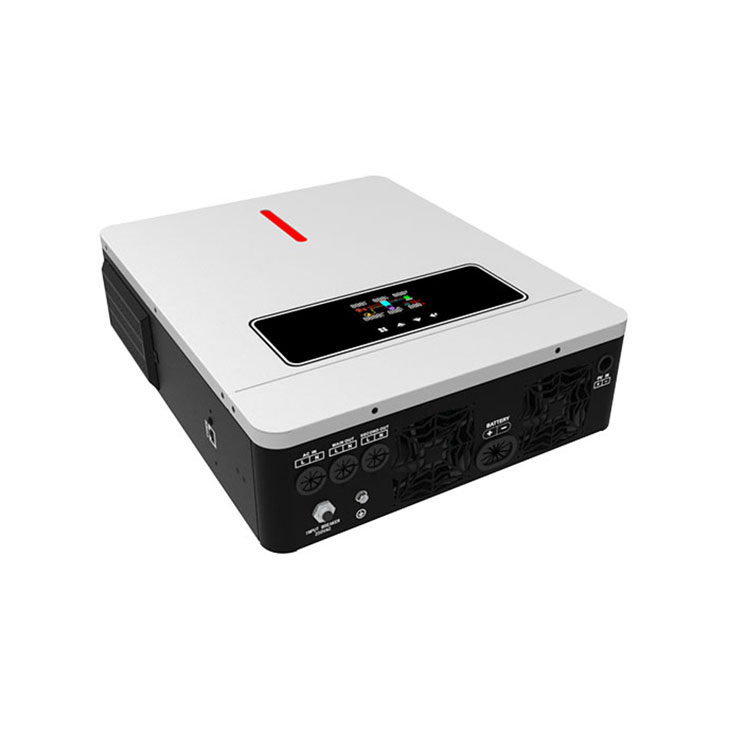

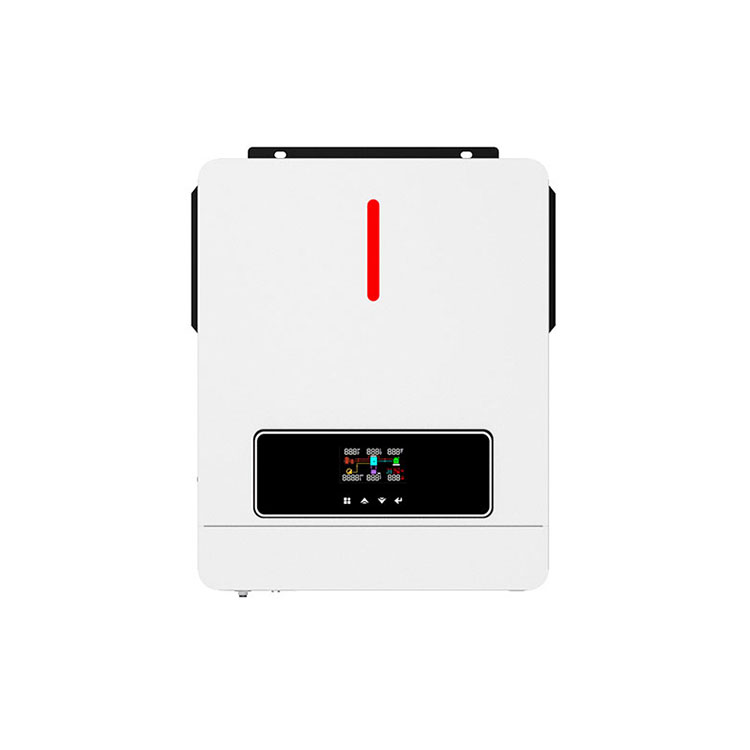

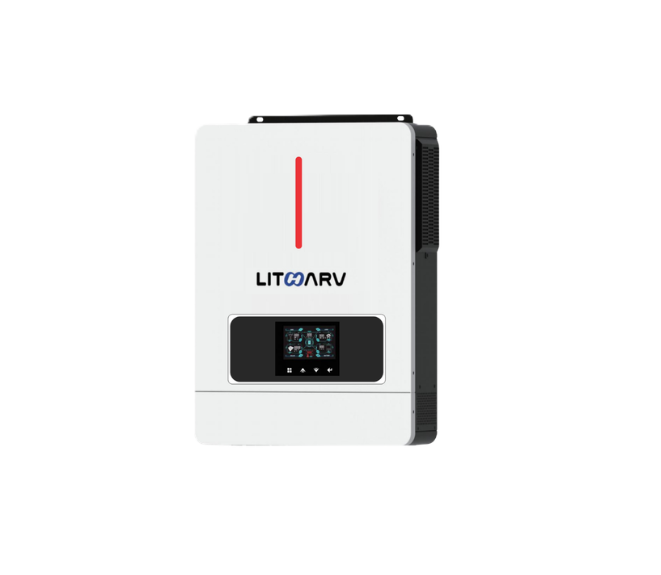

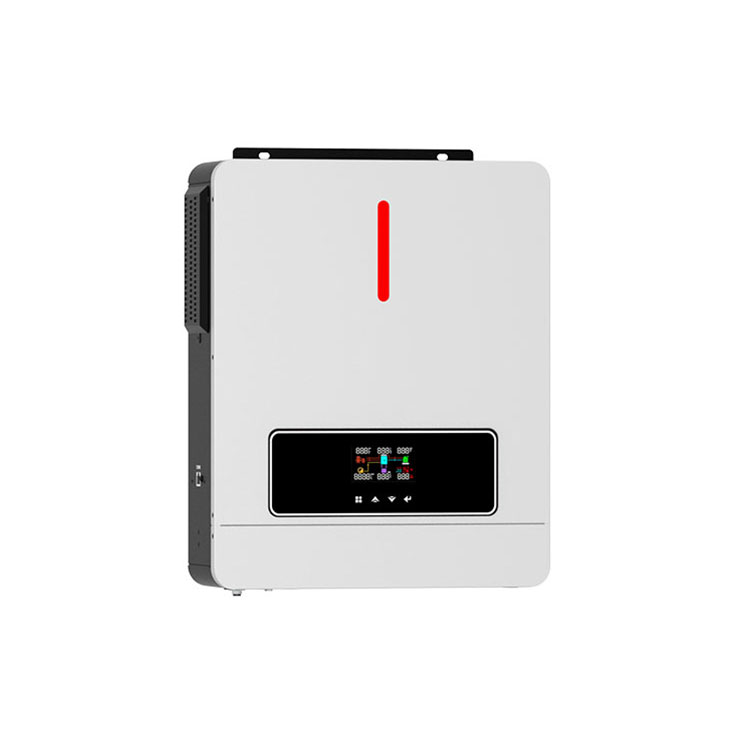

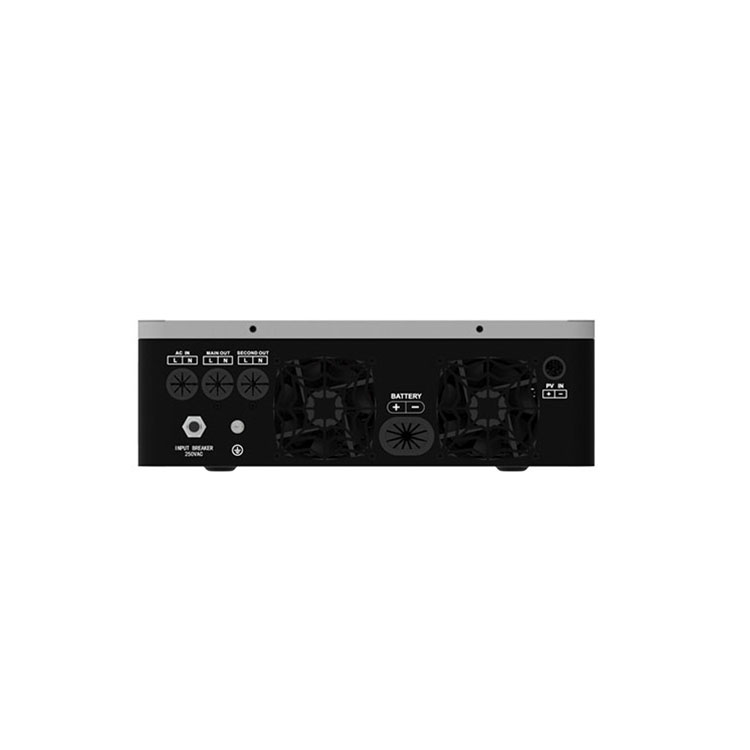

Litharv 6.2kW 48V
LTH-6.2K-48V
6.2kW wall-mounted 48V hybrid inverter with up to 6500W PV input, 500Vdc max solar Voc, 60–450Vdc MPPT, and pure sine wave hybrid operation.
- 6.2kW wall-mounted hybrid inverter for 48V battery systems.
- Max PV input 6500W.
- 500Vdc max solar Voc.
- MPPT input voltage 60–450Vdc.
- Max PV input current 27A.
- Nominal operating voltage 360Vdc.
- Suitable for larger home/commercial solar and backup systems.
- CE compliance
Inverter
| Parameter | Specification |
|---|---|
| Rated Power | - 6200W |
| Inverter Type | - Hybrid inverter, 1-phase, pure sine wave |
| PV Input | - 6500W; 500Vdc Voc; MPPT 60–450Vdc; 22A |
| Battery Voltage | - 48V |
| Surge Power | — |
| Efficiency | - DC/AC efficiency 98%; battery-to-AC 94% |
| Warranty | - 2 years replacement + 1 year repair |
Product overview
48V wall-mounted hybrid inverter rated at 6.2kW. It supports a maximum PV input power of 6500W and an MPPT input voltage of 60–450Vdc, with a maximum solar Voc of 500Vdc. Designed for larger home and commercial solar/backup systems
Warranty
2 Years Replacement + 1 Year Repair Warranty
